主要性能特點
（Main Feature）
1.根據鋁條寬度自動調節兩個膠嘴的距離, 可達30mm
2.液壓可啟動雙路系統確保穩定性能
3.工作速度可調節至5~47m/min
4.可加工弧形鋁框
5.可以選擇定時開機
6.設備自帶缺膠報警系統

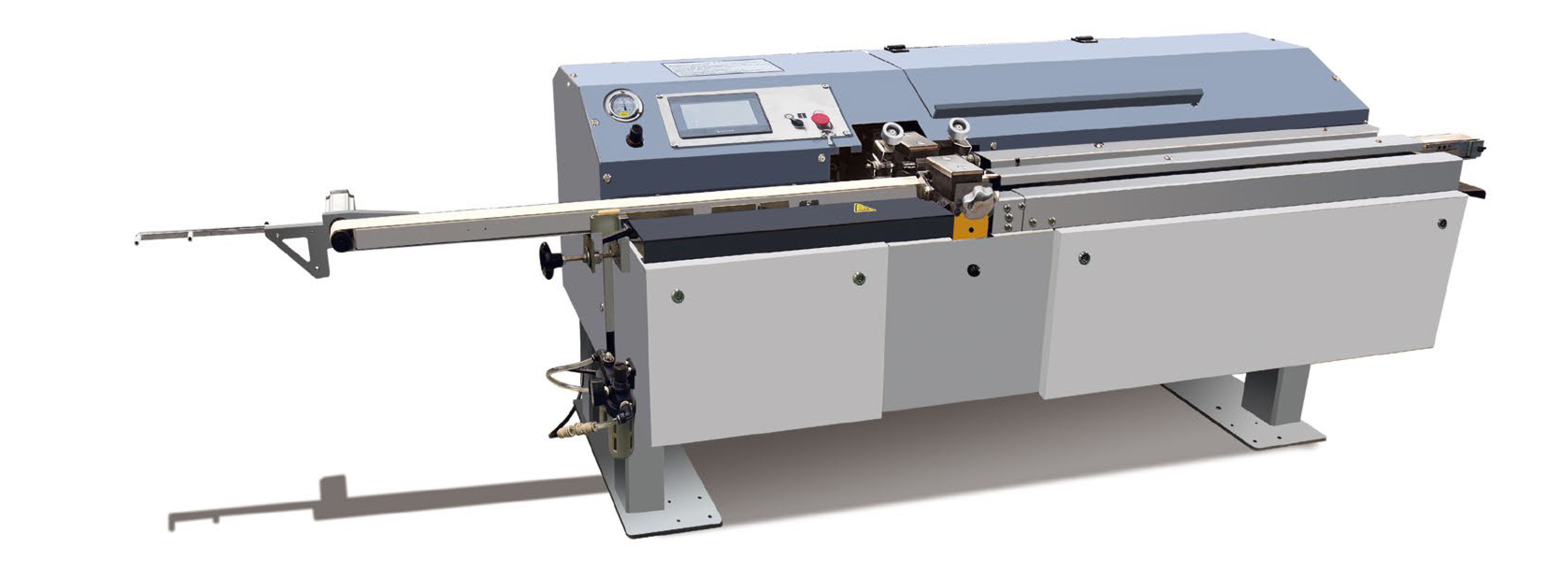

1.Butyl extruder can automatically process frames from 30mm width.
2.The feeding nozzles can be positioned to deliver uniform sealing.
3.Pneumatic operation of the butyl process is controlled by a PLC that electronically regulates the temperature of the butyl heaters.
4.A timer enables the pre-heating of butyl ahead of the start of operation.
5.Conveyor speed can be adjusted with 5 conveyor speed.
6.The machine has sealant shortage alarm system
主要技術參數
（Main Technique Parameter）
設備尺寸（Machine sizes）:3000mm(L)×700mm(w)×950mm(H)
鋁框?qū)挾龋⊿pacer width）: 6~27mm
最小鋁框（Minimal size）: 250mm×250mm
速度（Speed）:5~47m/min
容量（Butyl volume）: 14L(2blocks)
電壓（Power source）: 380V 50HZ
功率（Total power）: 5.7kw
氣源壓力（Air pressure）: ≥0.6MPa
總重量（Total weight）:890kg
